Piping Offset Calculator

Choose the unit of measurement :

Horizontal distance (run) :

Vertical distance (rise) :

Offset distance (Hypotenuse) :

Angle of offset :

How to Calculate Piping Offset

Calculating a piping offset involves determining the distance and angle by which a pipe must be shifted horizontally and/or vertically to accommodate obstacles, structures, or other pipes in the piping system. The offset can be calculated using basic trigonometry. Here's a step-by-step guide:

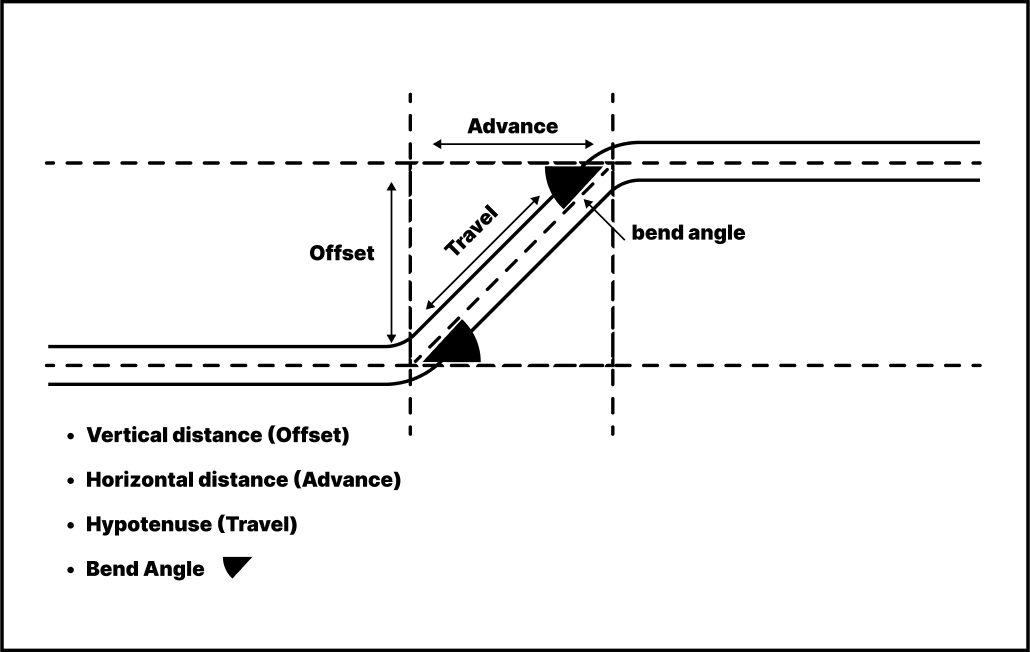

the Required Offset: Assess the piping layout and identify the obstruction or obstacle that requires the offset. Measure the distance from the starting point of the pipe to the obstacle along both the horizontal and vertical axes. These measurements will be the legs of a right triangle.

Calculate the Hypotenuse: Use the Pythagorean theorem to calculate the length of the hypotenuse of the right triangle formed by the horizontal and vertical distances. The Pythagorean theorem states that the square of the length of the hypotenuse (c) is equal to the sum of the squares of the lengths of the other two sides
(a and b):c² = a² + b²

c is the length of the hypotenuse (offset distance).
a is the horizontal distance.
b is the vertical distance.

Take the square root of the result to find the length of the hypotenuse (c).

Calculate the Angle of Offset: Once you have the horizontal and vertical distances, you can calculate the angle of the offset. Use inverse trigonometric functions such as arctangent (tan⁻¹) to find the angle. The formula to find the angle (θ) is: θ = tan⁻¹(b / a)

θ is the angle of the offset.
a is the horizontal distance.
b is the vertical distance.

Determine Direction: Based on the context of your piping system and the direction you want the offset to take, you may need to adjust the direction of the offset. This could mean adding or subtracting 90 degrees from the calculated angle, depending on whether you want the pipe to shift to the left or right, or up or down.

Apply the Offset: Once you have calculated the offset distance and angle, you can use this information to adjust the position of the pipe accordingly, either by cutting and reconnecting sections of pipe or by using fittings designed for offsets.
Remember to always double-check your calculations and measurements before making any adjustments to the piping system, and ensure compliance with relevant codes and regulations.
